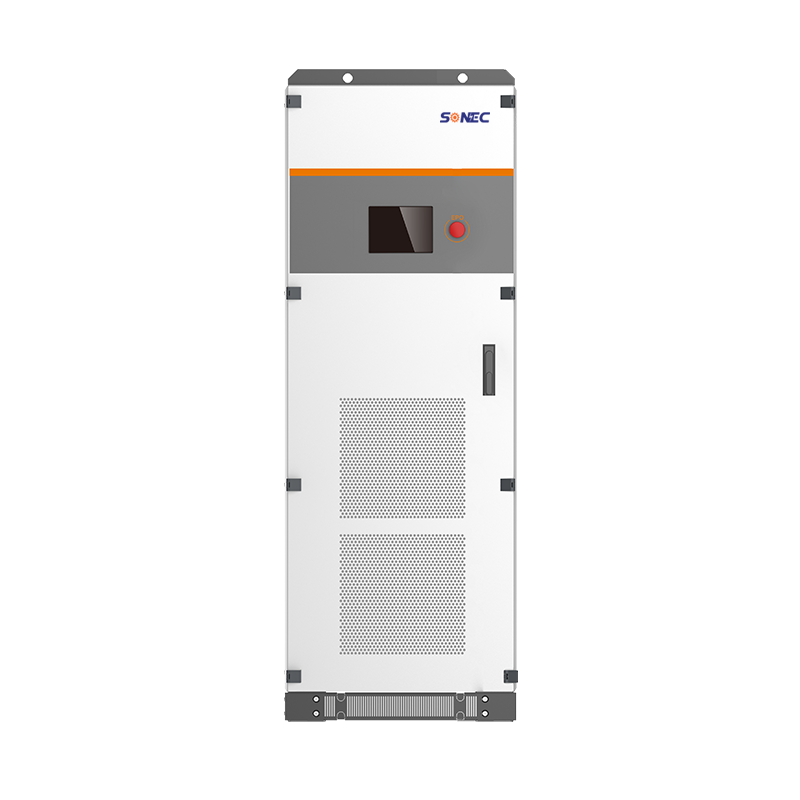

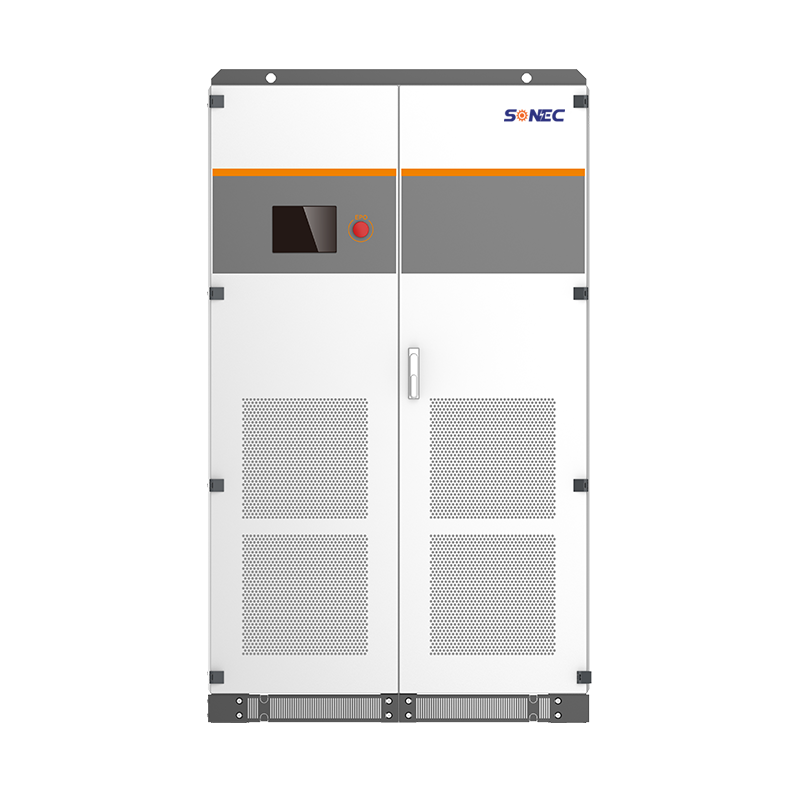

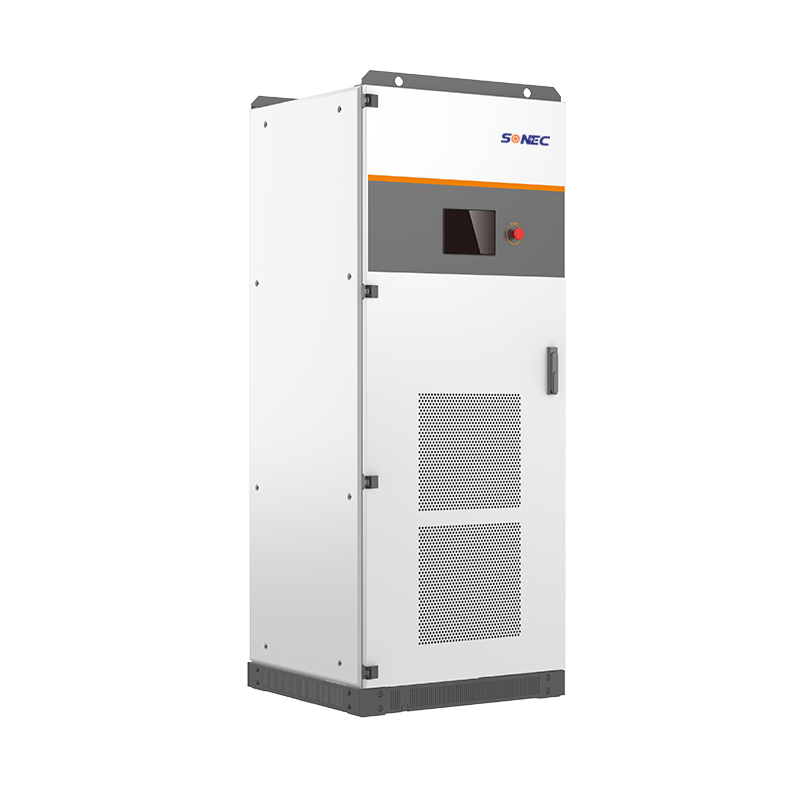

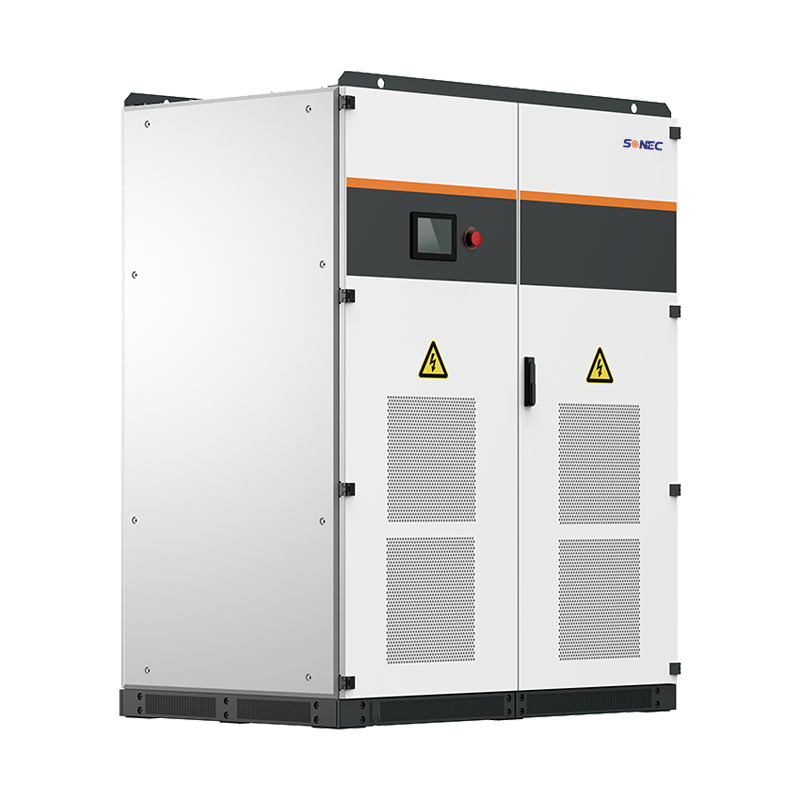

Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)
Power conversion system (with isolation transformer)


Power conversion system (with isolation transformer)


  • Support multiple sets of parallel use, covering wide power range of 30kW-3000kW;

  • Compatible with LFP , lead-acid and other batteries;

  • Built-in simple EMS function, support remote maintenance and monitoring;

  • With grid-connected charge and discharge, off-grid independent inverter function;

  • Support on/off grid automatic switching;
Model MEGA0030TS MEGA0050TS  MEGA0100TS MEGA0150TS

MEGA0250TS

MEGA0500TS

DC(battery)
Voltage range (V) 250~850 320~850 420~850 420~850 420~850 500~850
Max. current (A) 137 178 270 405 673 1,128

AC(on-grid)
Max. output power (kW) 33 55 110 165 275 550
Rated output power (kW) 30 50 100 150 250 500
Rated voltage (V) 400
Voltage range (V) 320~460
Rated current (A) 43 72 144 216 361 722
Max. output current (A) 48 80 159 238 397 794
Rated frequency (Hz) 50/60
Frequency range (Hz) 45~55 / 55~65
THDi <3%
Power factor 1leading~1lagging(settable)
Grid type 3W+N+PE

AC(off-grid)
Rated voltage (V) 400
THDu <1% Linear <5% nonlinear
Rated frequency (Hz) 50/60
Overload capacity 110% long-term

General data
Max. efficiency 96.3% 96.5% 97.1% 97.1% 97.3% 97.5%
Ingress protection IP21
Noise emission (dB) <70
Operating temperature (℃) -30~+55
Cooling  Forced air
Relative humidity  0 ~95% non-condensing
Max. operating altitude (m) 5,000(>3,000 derating)
Dimension W*D*H (mm) 800*800*1,900 800*800*1,900 800*800*1,900 800*800*1,900 1,200*800*2,050 1,600*1050*2,050
Weight(kg) 621 712 936 1,057 1,582 2,665
Self-consumption <0.5%
On/ off grid switching Automatic

Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication  RS485, TCP/IP
Certificates

IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
