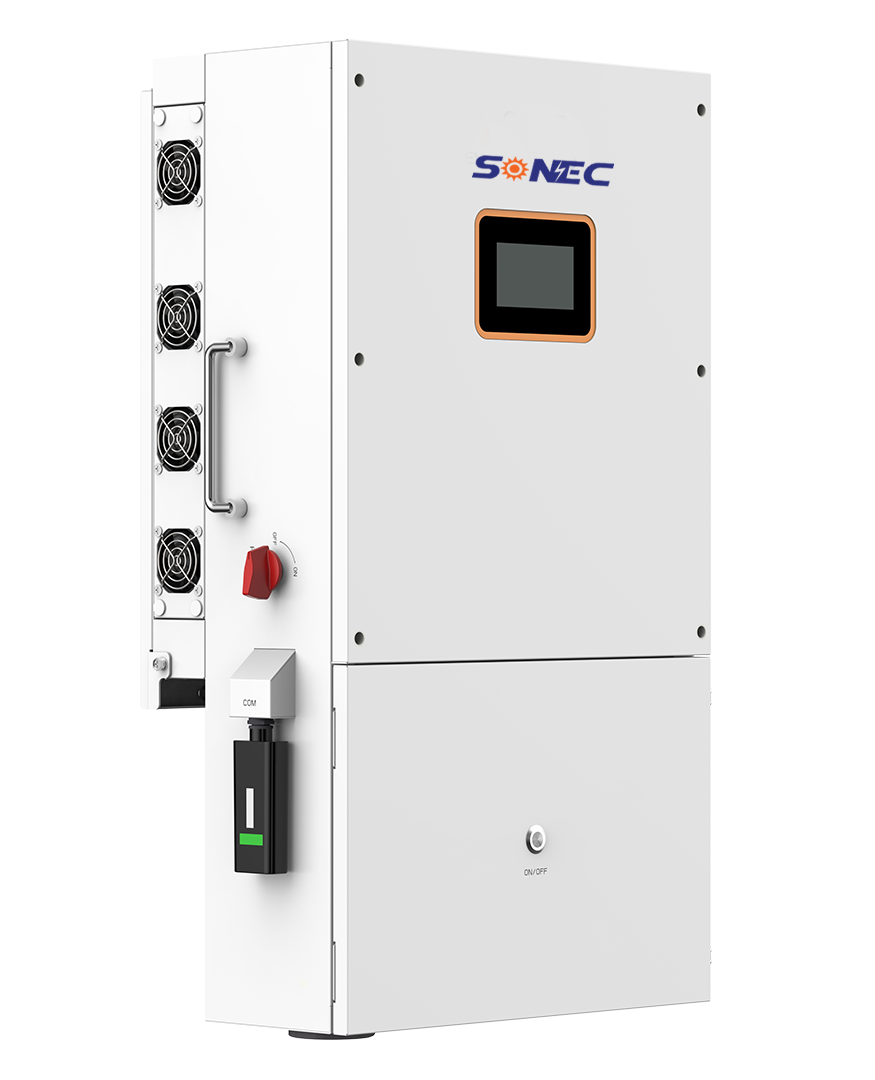

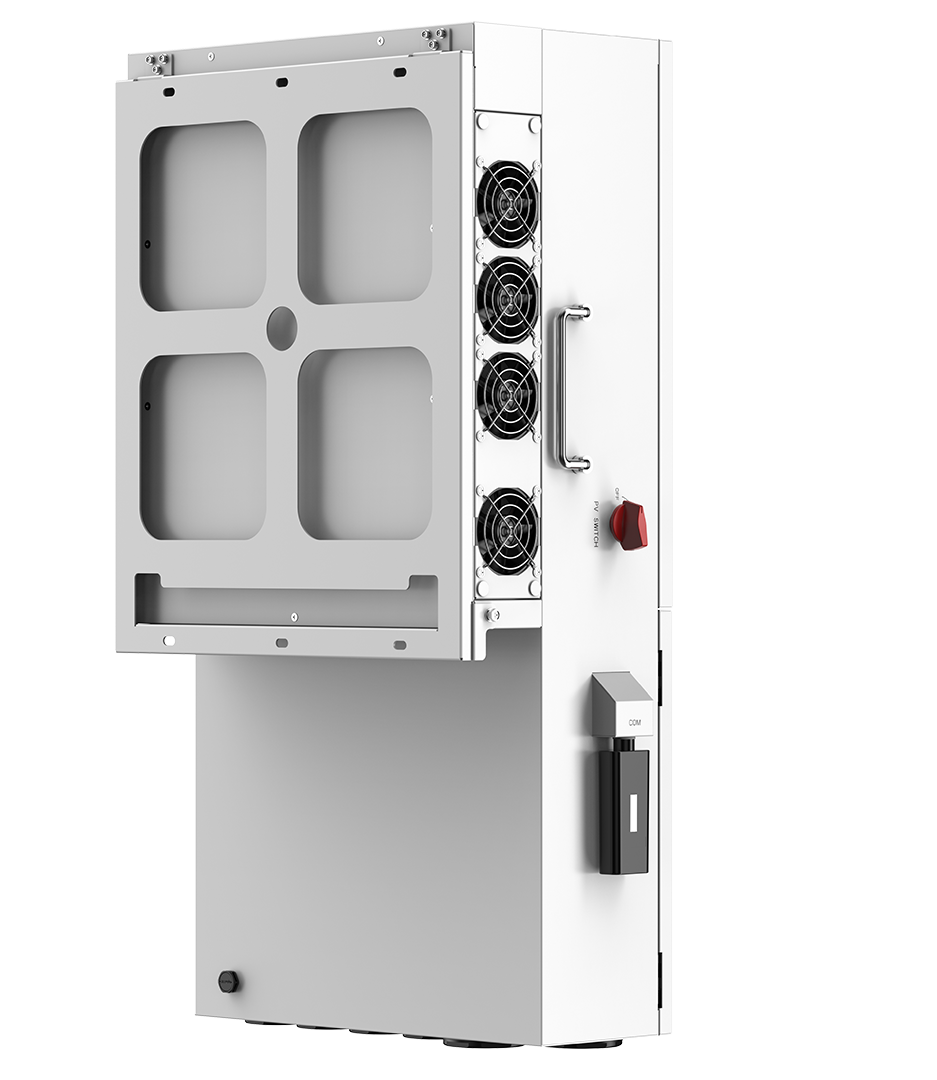

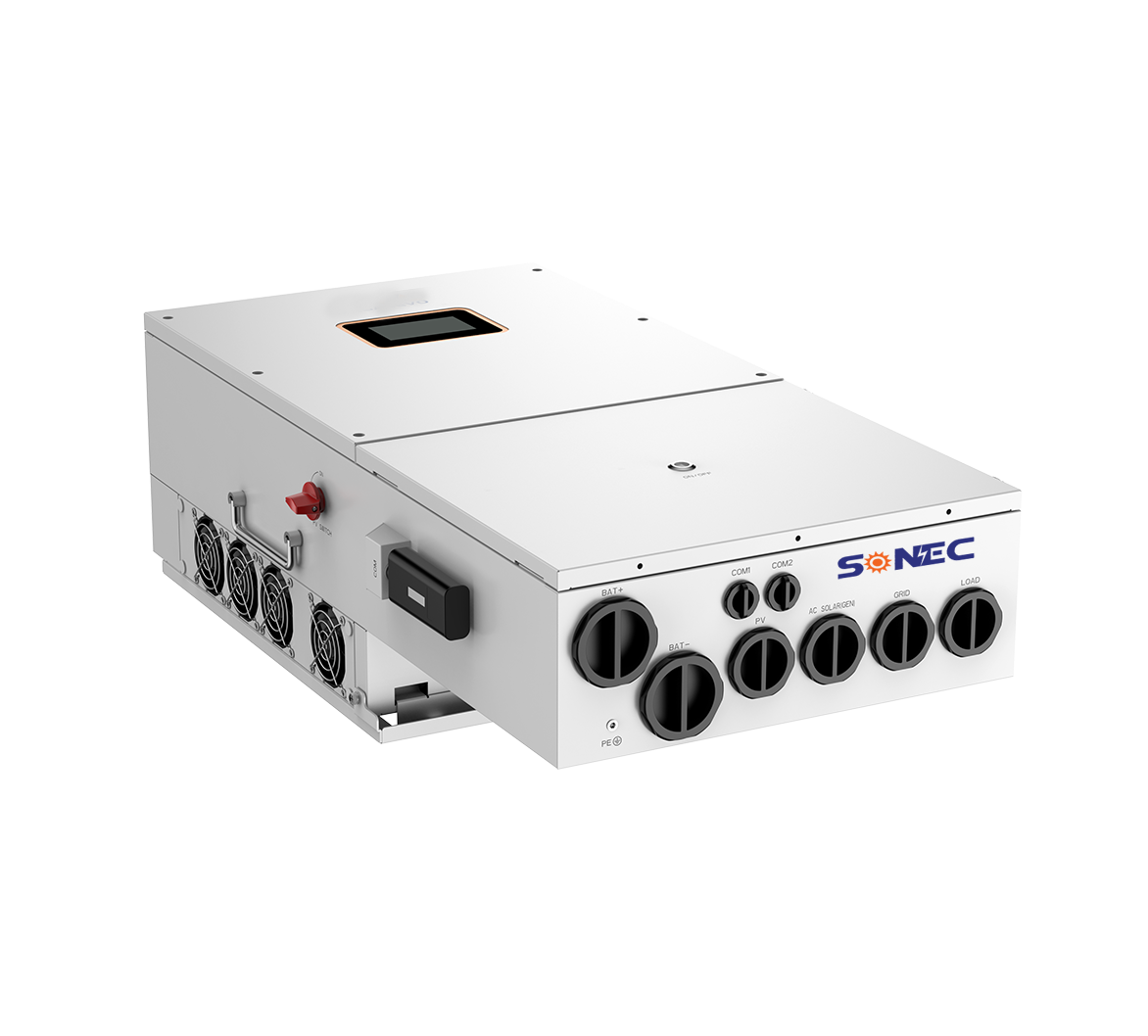

>O6KL1D Off-grid Inverter

Please fill in the email and download the information immediately

5/8/10KW Series
5/8/10KW Series
5/8/10KW Series
5/8/10KW Series
5/8/10KW Series
5/8/10KW Series
5/8/10KW Series
5/8/10KW Series
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Tel:+86 173 0269 4349

Email:Amy001@sonecpower.com

Product Highlights
Application flexibility
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification.
Flexible configuration
Support multi-machine parallel connection. Support multi-machine parallel mode sharing a battery pack Single-machine load capacity 100A.
Supports expansion
Support parallel SOC equalization control and parallel current sharing control. Using split-phase topology and eliminating the transformers, to make the system efficiency higher. Support the diesel generator and the grid access at the same time
Choose our benefits

Save more installation, commissioning costs

Reduce the use of fossil fuels and be more environmentally friendly

Continuous and stable power supply

PV expansion will be more convenient in the future

5/8/10KW Series
Model R5KLNA R6KLNA R7KLNA R8KLNA R10KLNA
PV input data
Max. PV input power (kW) 7.5 9 12 12 15
Max. PV input voltage (V) 500
Min. PV input voltage (V) 120
Start-up voltage (V) 120
MPPT voltage range (without battery)(V) 120~500
MPPT voltage range@full-load (V) 150~430
Rated PV input voltage (V) 310
No. of MPPT trackers 4
No. of strings per MPPT tracker 1/1/1/1
Max. input current per MPPT (A) 14/14/14/14
Max. short-circuit current per MPPT (A) 22/22/22/22
Battery input data
Battery type Lithium-ion / Lead-acid
Max. charge / discharge power (kW) 5 6 7.6 8 10
Battery voltage range (V) 40~60
Battery voltage range@full-load (V) 48~58
Rated battery voltage (V) 48
Max. charging / discharging current (A) 120/120 135/135 190/190 190/190 190/210
Rated charge / discharge current (A) 120/120 135/135 190/190 190/190 190/210
Charging strategy for Li-Ion battery Self-adaption to BMS
BMS communication  CAN
AC output data (grid side)
Rated output power (kW) 5 6 7.6 8 10
Max. apparent output power (kVA) 5.5 6.6 8.4 8.8 11
Rated grid voltage( (V) 110-127/208-240V split phase, 240V single phase
Grid voltage range (V) 192~288
Rated grid frequency (Hz) 60
Grid frequency range(Hz) 55 to 65
Rated output current (A) 20.8 25 31.7 33.3 41.7
Max. AC output current (A) 22.9 27.5
 34.8 36.7 45.8
Power factor 0.8leading~0.8lagging
Max. grid passthrough current(A) 100
THDi <3%
Grid type 2L+N+PE
AC output data (load side)
Rated output power (kW) 5 6 7.6 8 10
Max. apparent output power (kVA) 5.5 6.6 8.4 8.8 11
Rated output voltage (L-N/L1-L2) (V) 120/240
Rated output frequency (Hz) 60
Rated output current (A) 20.8 25 31.7 33.3 41.7
Max. AC output current (A) 22.9 27.5 34.8 36.7 45.8
Peak output power 110%,30s / 120%,10s / 150%,0.02s
Back-up switch time (ms) <20
THDu <2%
Protection
Supported protection

Arc fault protection, PV reverse polarity protection, Anti-islanding protection, Ground fault protection

Leakage current protection, Insulation resistance detection, Backup output short circuit protection,

AC under-voltage protection, AC output over-current protection, AC over-voltage protection,

Surge protection DC Type II / AC Type II
Over voltage category DC Type II / AC Type III



Certifications and standards
Certificates FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE1547
General data
Ingress protection IP65 / NEMA 3R
Operating temperature range (℃) -25~+60
Cooling FAN cooling
Relative humidity 0-95%
Operating altitude (m) 0~4,000 (Derating above 2,000 altitude)
Dimensions W*D*H (mm) 450 x 820 x 240
Weight (kg) 47
Topology (solar / battery) Transformerless / Transformer
Noise emission (dB) 48
Display and communication
Display Touch panel
Communication RS485, 4G (optional), Wi-Fi
