• High efficiency up to 99.5% for optimal performance.
• Fast switch time (<10ms) ensures seamless power.
• Wide MPPT voltage range: 120V-500V d.c.
• Supports 40V-60V lithium and lead-acid batteries.
• BMS communication & remote monitoring via APP or Web.
| TECHNICAL SPECIFICATION | ||||

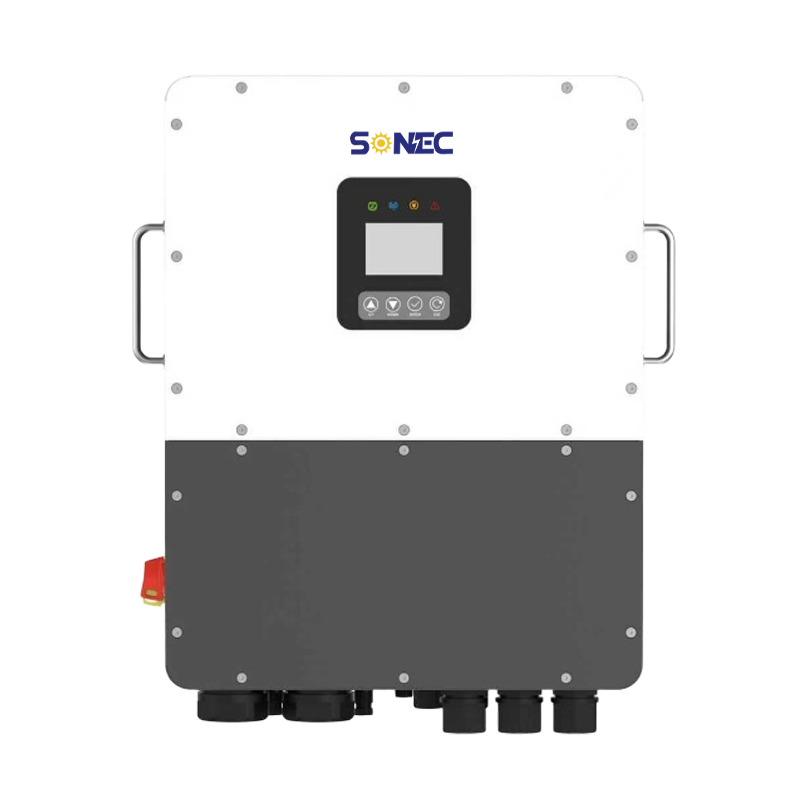

| Model | SSE-HL8K-P2US | SSE-HL10K-P2US | SSE-HL12K-P2US | SSE-HL15K-P2US |
| INVERTER INPUT /OUTPUT (GRID) | ||||
| Rated Power | 8 kW | 10 kW | 12 kW | 15 kW |
| Rated Voltage | 120 V a.c. / 240 V a.c. (Split Phase), 208 V a.c. (2/3 Phase) | |||
| Rated Frequency | 50 Hz / 60 Hz | |||
| Power Factor Range | 0.8 leading ~ 0.8 lagging | |||
| Switch Time | ＜10 ms | |||
| Current (Maximum Continuous) | 33.4 A a.c. | 41.7 A a.c. | 50 A a.c. | 62.5 A a.c. |
| Max. Output Overcurrent Protection | 250 V a.c. /125 A a.c. | |||
| BATTERY | ||||
| Battery Type | Lithium / Lead-acid | |||
| Battery Voltage Range | 40 ~ 60 V d.c. | |||
| Rated Battery Voltage | 51.2 V d.c. | |||
| Max. Charge Current | 167 A d.c. | 210 A d.c. | 250 A d.c. | 275 A d.c. |
| Max. Discharge Current | 167 A d.c. | 210 A d.c. | 250 A d.c. | 275 A d.c. |
| Reverse Connect Protection | Yes | |||
| PV INPUT | ||||
| No. of MPPT Tracker / Strings | 2 / 2+2 | 3 / 2+2+2 | 3 / 2+2+2 | 3 / 2+2+2 |
| Max. PV Array Power | 12 kW | 15 kW | 18 kW | 22.5 kW |
| Max. DC Voltage | 525 V d.c. | |||
| MPPT Voltage Range | 120 ~ 500V d.c. | |||
| Start-up Voltage | 100 V d.c. | |||
| Max. Input Current | 26 +26 +26 A d.c. | |||
| Isc PV (Absolute Maximum) | 39 A d.c. | |||
| AC OUTPUT(EPS) | ||||
| EPS Rated Output Voltage | 120 V a.c. / 240 V a.c. (Split Phase), 208 V a.c. (2/3Phase) | |||
| EPS Rated Output Frequency | 50 Hz / 60 Hz | |||
| EPS Rated Output Active Power | 8 kW | 10 kW | 12 kW | 15 kW |
| EPS Rated Output Apparent Power | 8 kVA | 10 kVA | 12 kVA | 15 kVA |
| EPS Rated Output Current | 33.4 A a.c. | 41.7 A a.c. | 50 A a.c. | 62.5 A a.c. |
| Overload Capacity (Off Grid) | 200% 10s | |||
| EFFICIENCY | ||||
| MPPT Efficiency | 99.90% | |||
| California-efficiency | 96.50% | |||
| Max. Efficiency | 97.50% | |||
| PROTECTION & FEATURE | ||||
| Insulation Monitoring | Yes | |||
| Residual Current Monitoring | Yes | |||
| Parallel Function | Yes | |||
| Protection Degree | IP65 | |||
| Certifications | IEEE1547, CA RULE21, HECO SRD V2.0, UI1741 SA/SB, CSA C22.2, UL1699B. | |||
| Other Protection | Overload, Over temperature, Short circuit, Anti-islanding | |||
| GENERAL PARAMETER | ||||
| Storage Temperature | -25°C ~ +60°C (-13℉ ~ +140℉) | |||
| Operating Temperature | -25°C ~ +60°C (-13℉ ~ +140℉), > +45°C (+113℉) Derating to 60% | |||
| Humidity | 0-95% (Non-condensing) | |||
| Operating Altitude | 4000m (>2000 m, Derating) | |||
| Noise | <45 dB | |||
| Dimensions(W*H*D) | 450*700*240 mm (17.72*27.56*9.45 in) | |||
| Machine Weight/ N.W. | 45 kg (99.21 lbs) | |||
| DISPLAY & COMMUNICATION | ||||
| Display | LED + APP | |||

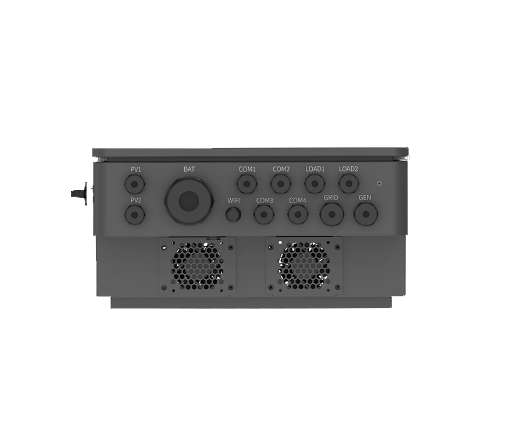

| Interface | RS485 / WiFi / CAN (Optional: Bluetooth / LAN / 4G / Meter) | |||
Save more installation, commissioning costs
Reduce the use of fossil fuels and be more environmentally friendly
Continuous and stable power supply
PV expansion will be more convenient in the future
